Edges Medicare Private Limited

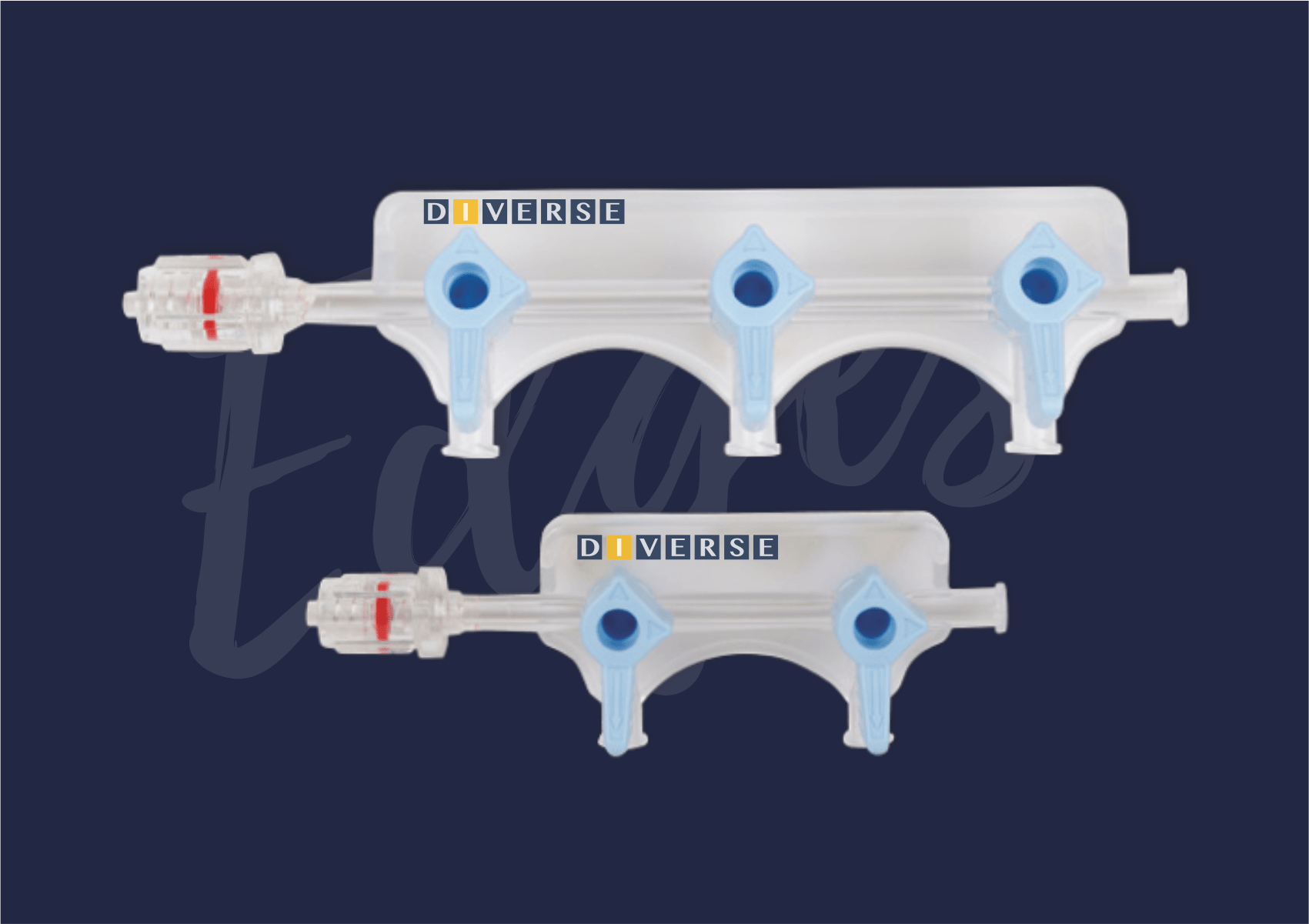

The Diverse Manifold is available with integrated valve on the outermost port from the rotator to give flow control as directed. High & Medium Pressure Stopcocks and Manifolds are suitable for PTCA and other interventional applications and are designed to withstand 500 to 1200 psi pressure. The Diverse Manifold available with 2 way and 3 way configurations with rotating High Pressure adapters or a standard swivel luer lock nut.

Designed with easy-to-grip handles and clear polycarbonate bodies for visibility & durability.
High & Medium Pressure Stopcocks and Manifolds withstand 500 to 1200 psi.
Medium & Low Pressure Stopcocks and Manifolds withstand 250 to 500 psi.
Airless rotator increases chance of successful procedure by minimizing the possibility of air trapping and creates more space for clinician to operate.
Ergonomic On-Off Handle Designs.

The DIVERSE manifold with integral relief valve is used in cardiac interventional procedure to control the flow of contrast without having to manipulate handles.

Side Port	Body	Pressure	Type	Product Code
2 PORT	HALF BODY	500 PSI	RIGHT ON	DVS2600RON
2 PORT	HALF BODY	500 PSI	RIGHT OFF	DVS2600ROFF
3 PORT	HALF BODY	500 PSI	RIGHT ON	DVS3600RON
3 PORT	HALF BODY	500 PSI	RIGHT OFF	DVS3600ROFF
2 PORT	Full BODY	600 PSI	RIGHT ON	DVS2500RON
2 PORT	Full BODY	600 PSI	RIGHT OFF	DVS2500ROFF
3 PORT	Full BODY	600 PSI	RIGHT ON	DVS3500RON
3 PORT	Full BODY	600 PSI	RIGHT OFF	DVS3500ROFF
